Buzzrack Eazzy 4 Bike Rack

Fully foldable EAZZY series offer convenient mounting, user-friendly functions and compact storage. The ratchet cradle is the perfect solution to attach the bike frame. It is also a great solution for carbon frames as it does not apply pressure to the carbon tubes.

The BUZZRACK Eazzy 4 is a really well designed, well engineered piece of kit; smart, sophisticated and very good value for money.

Basic ergonomics

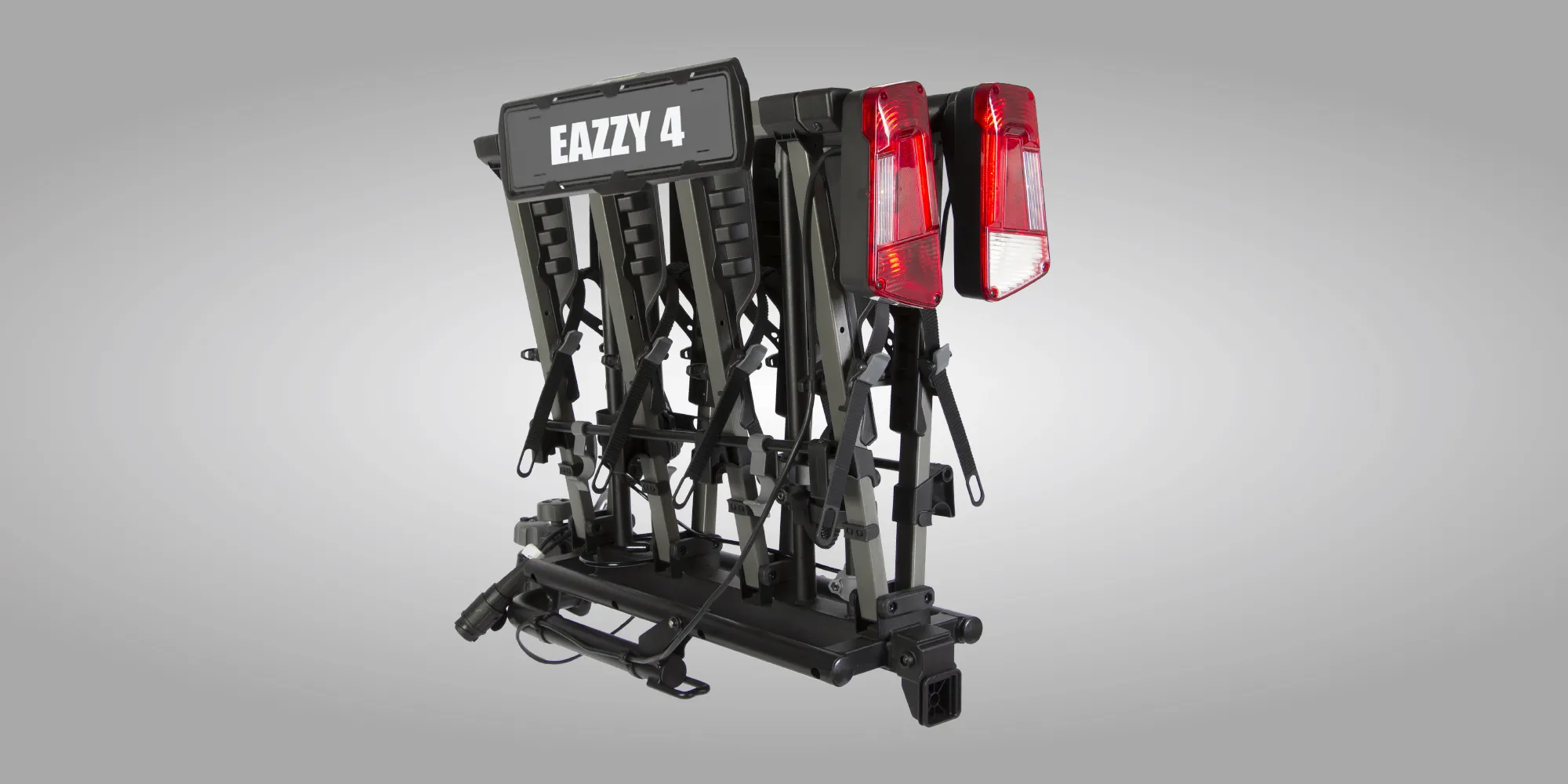

Easy! The Eazzy 4 is very easy to fold which makes for easy lifting, easy carrying, easy fitting, easy storage in the car boot when you are out for a ride.

Folds to store in the car: this is really useful, because damage to tow bar carriers in car parks from other vehicles can be an issue. A tow bar carrier will almost certainly make your car much too long for a standard car parking space.

More detail about folding: because the support trays fold into the bike holder uprights (there are straps to hold them closed) the Eazzy 4 is easy to carry around, easy to fit and remove, and easy to store. The metal parts are steel, not aluminium, and it weighs almost 20kg, but because it’s a vertical 2-handed lift it feels much lighter than this, and there should be no strain on your back when moving it and fitting it. Most 4 bike wheel support racks are relatively very awkward and hard work to handle compared to the Eazzy 4.

Key features of the Eazzy 4

Assembly: The Eazzy 4 is supplied fully assembled, except for the lights which are attached with only 1 screw each side (which makes these lights particularly easy to replace if damaged), and there’s 1 bolt for the number plate holder – all fittings and a tool are supplied.

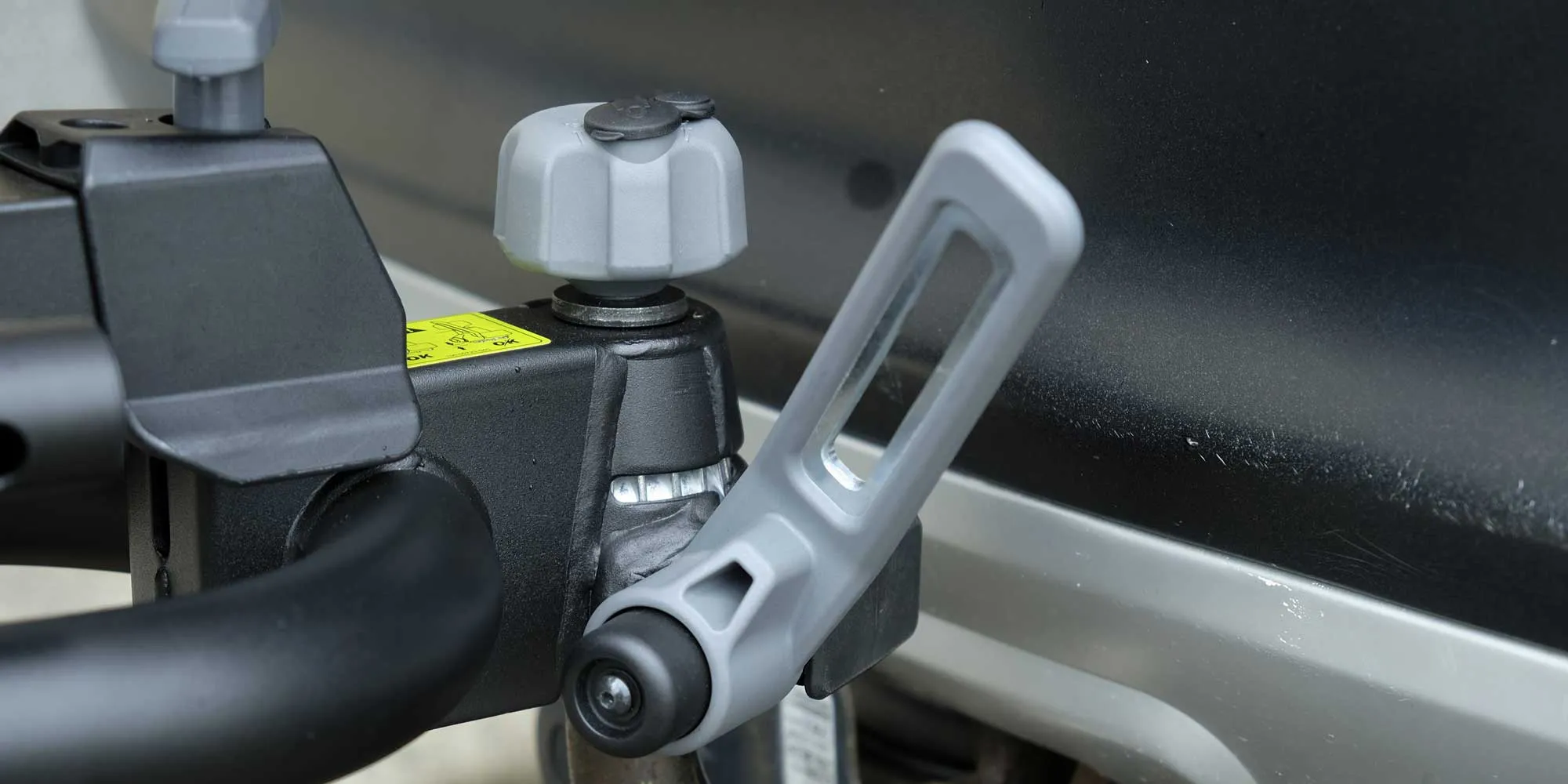

Fitting to the car: You fit the Eazzy 4 in its folded state, which leaves you with all the space you need to work on the tow ball fitting system. When you first place it on the tow ball it supports itself – you can let go of it and it won’t fall to the ground. You’ll then take the weight again, spin the tightening wheel until it’s tight, and lock it. BUZZRACK’s carriers comply with the very exacting standard XPR-18-904-4 and therefore include an anti-sway tensioner; this has an integrated handle and 2 or 3 turns are usually sufficient. The video below shows the fitting and the bike installation.

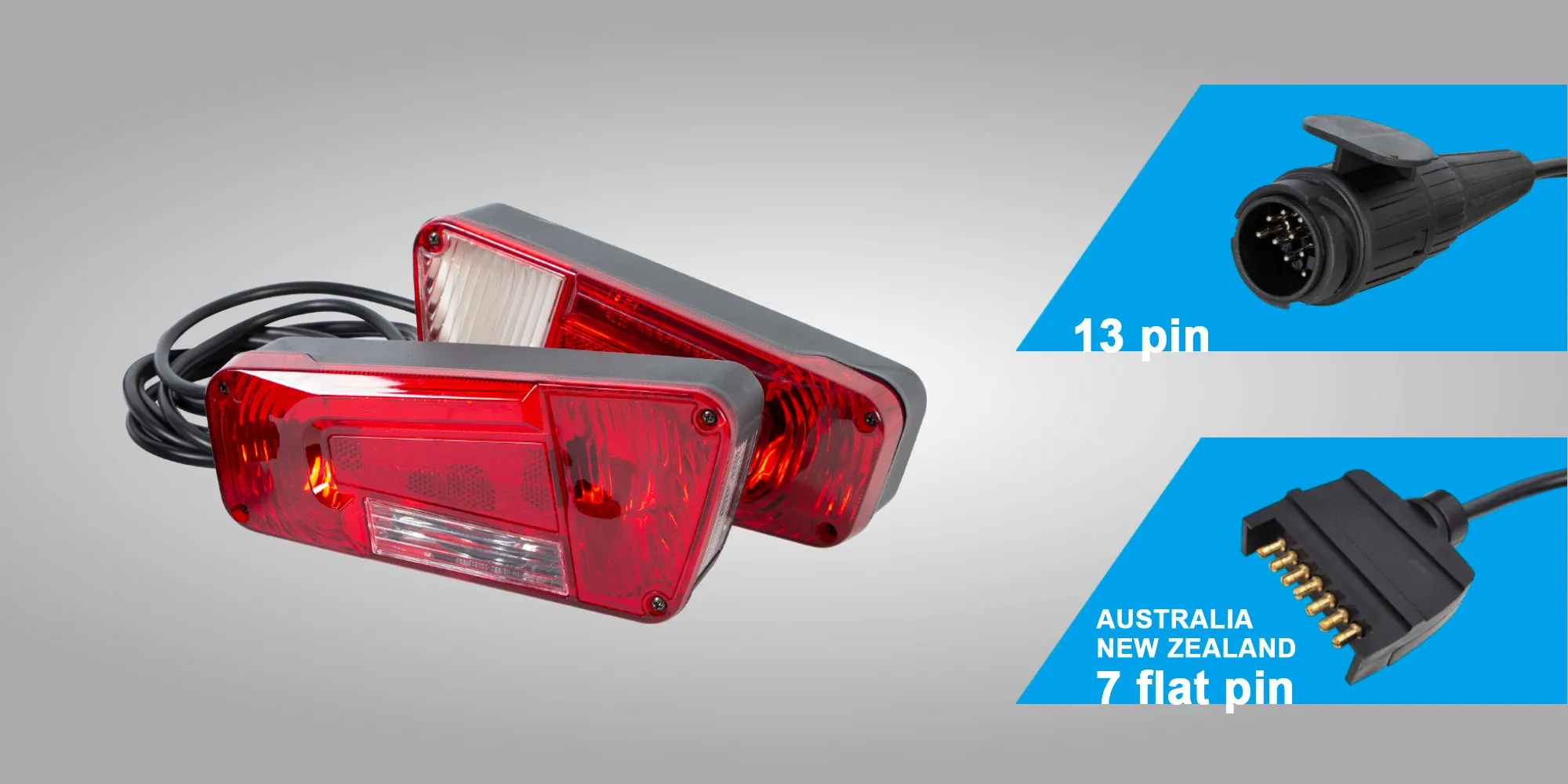

Lighting system: The Eazzy 4 comes with a 13 pin lighting system, including a reversing light. 13 pin to 7 pin adapter is not included. (3 function 7 pin flat plug for AUS/NZ)

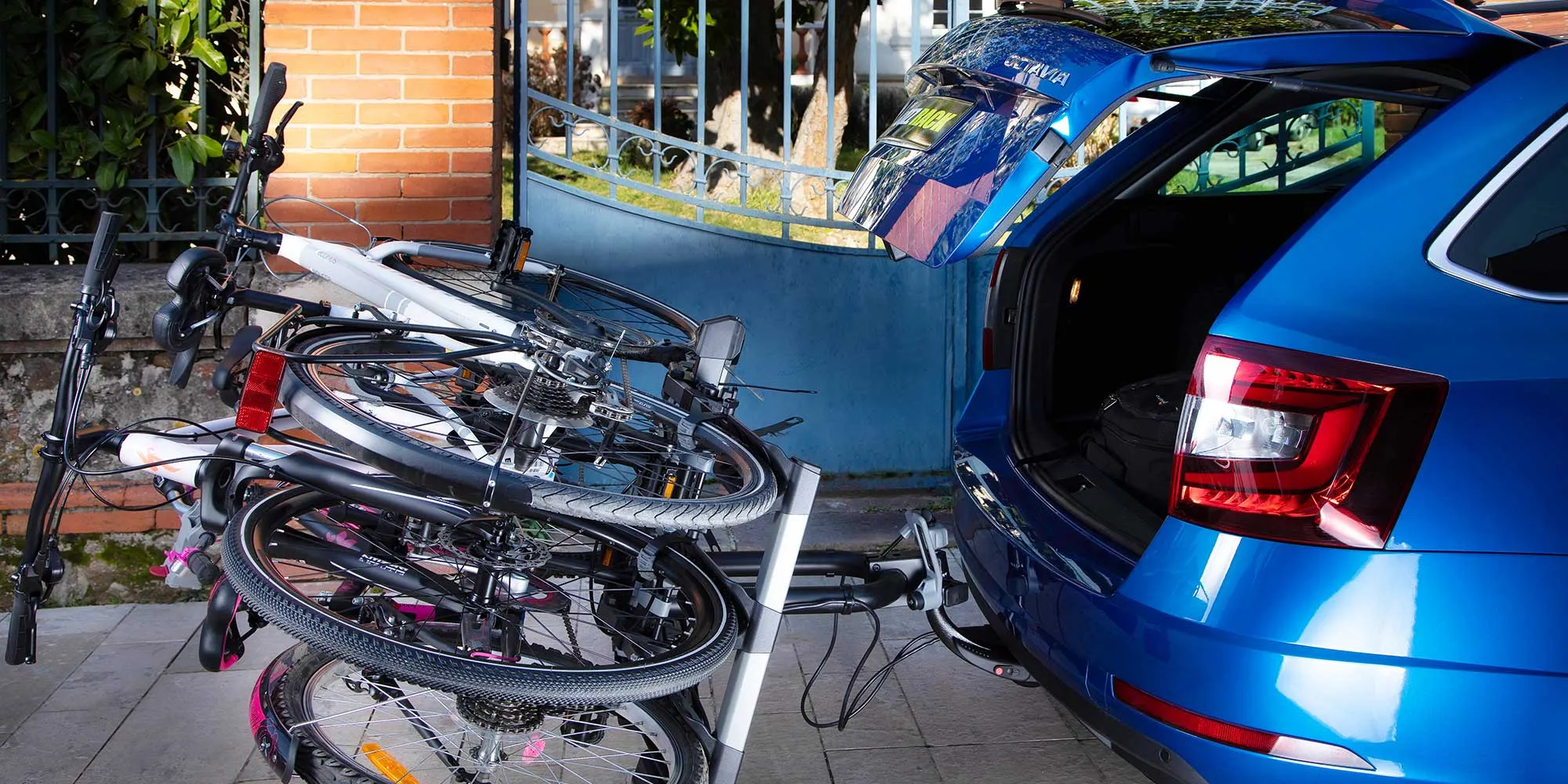

Tilting: Tilting is easy, and is very well balanced even with a full load. The Eazzy 4 sits quite high on the tow ball, and the tilt function is optimised to prevent the lights from hitting the road surface, while still using the weight of the bikes to help bring the bike platform back to the level again in a controlled way. But this geometry doesn’t allow for tall vertical tailgates to be opened – e.g. VW Transporter T5 and T6.

Carrying bikes

The wheel holders will accommodate most wheelbases (not tandem!), even small children’s bikes. Check technical data below
The long wheel rubber-padded wheel straps hold tyres up to 3.25” wide; pull on them to tighten, and use the quick release to loosen

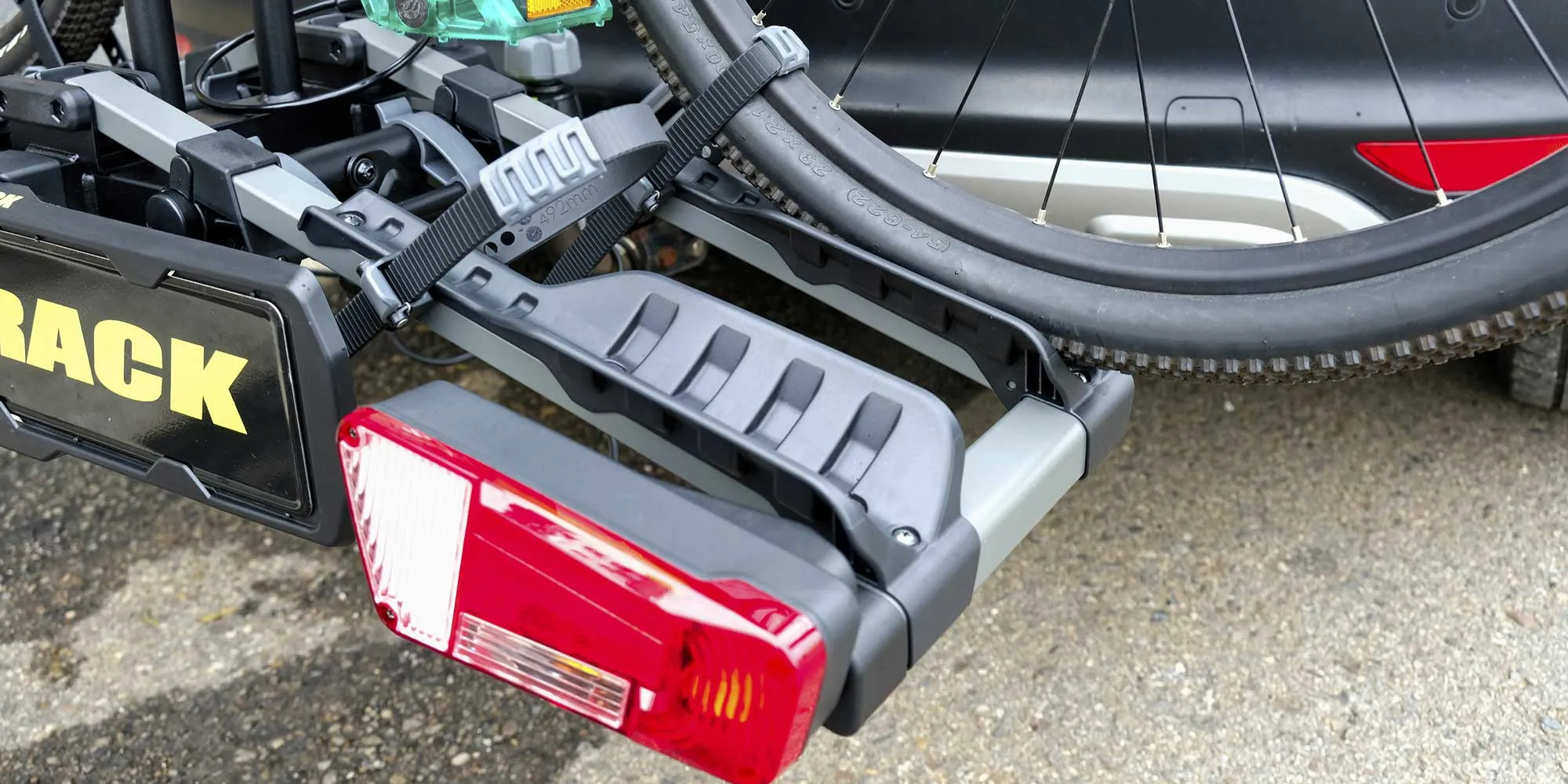

The Eazzy 4 is entirely suitable for carbon frame bikes; the rubber-padded bike frame cradles rotate 360 degrees and, again using rubber-padded straps, they hold any type of tube firmly but gently.
The maximum permitted load is 60kg, with no bike weighing more than 20kg
Bikes up to 20kg may be carried; the down tube size is limited to 75mm diameter (3″); whatever bikes you have, always load the heaviest bikes nearest to the car

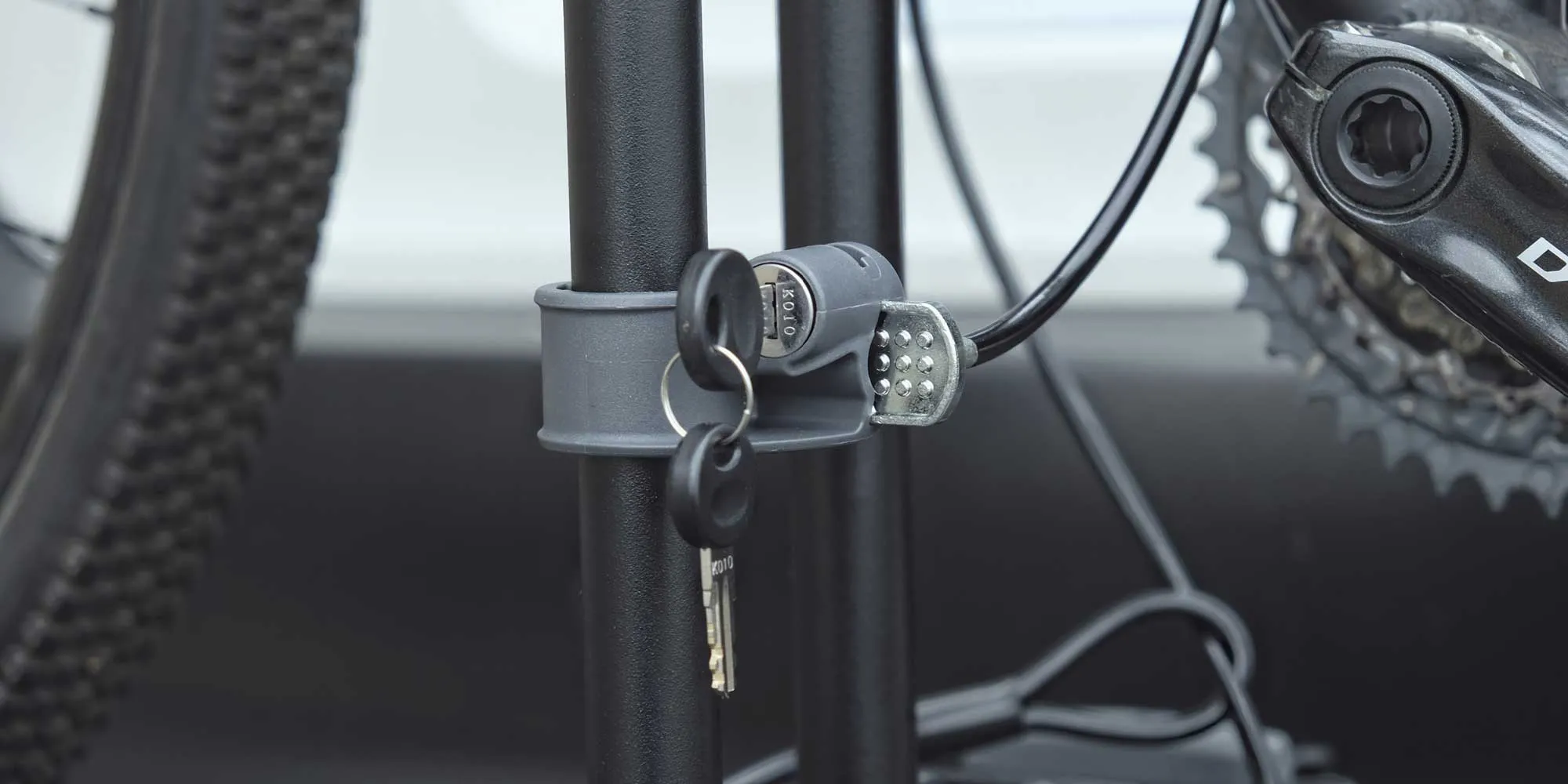

There is a built in locking cable to secure your bikes; as usual with cable locks, it’s a deterrent only.
Other features and basic specifications

The patented conical fitting fits to all tow balls, even to the bolt-on tow balls we see occasionally that do not meet standards for neck length or ball diameter.
A reminder that it locks to the tow ball.
The Eazzy 4 sits high on the tow ball, well clear of speed bumps and other hazards such as steep ferry ramps.
Dimensions: 112cm wide x 94cm deep (measured from the centre of the tow ball to the outside edge of the number plate holder). 24cm wide when folded.
Weight: 19.8kg
The build quality – tube bending, welding, rust proofing, painting, component quality, is exemplary. The whole carrier looks and feels like the class act it is. All tools you might need are provided.
All parts are replaceable if e.g. someone forgets that a tow bar carrier is fitted and reverses into a wall – which happens!
Not suitable for trailers, campers, or RVs

Max number of bikes: 4
Max weight per bike: 20kg
Max load capacity: 60kg
Max tire size: 3.25″
Max bike frame down tube size: diameter 75mm(3″)
Fits 50mm ISO tow ball: yes
Fits swan neck / detachable tow ball: yes
Dimensions (width x depth): 113 x 92 cm
(measured from the centre of the tow ball mount to the outside edge of the number plate holder).
Weight: 19.8kg
Tilting: yes
Integrated lighting board: yes
Lighting board plug type: 13 pin (7 pin flat plug for AUS/NZ)
Bike carrier to tow ball lock: yes
Bike carrier to bike lock: yes
