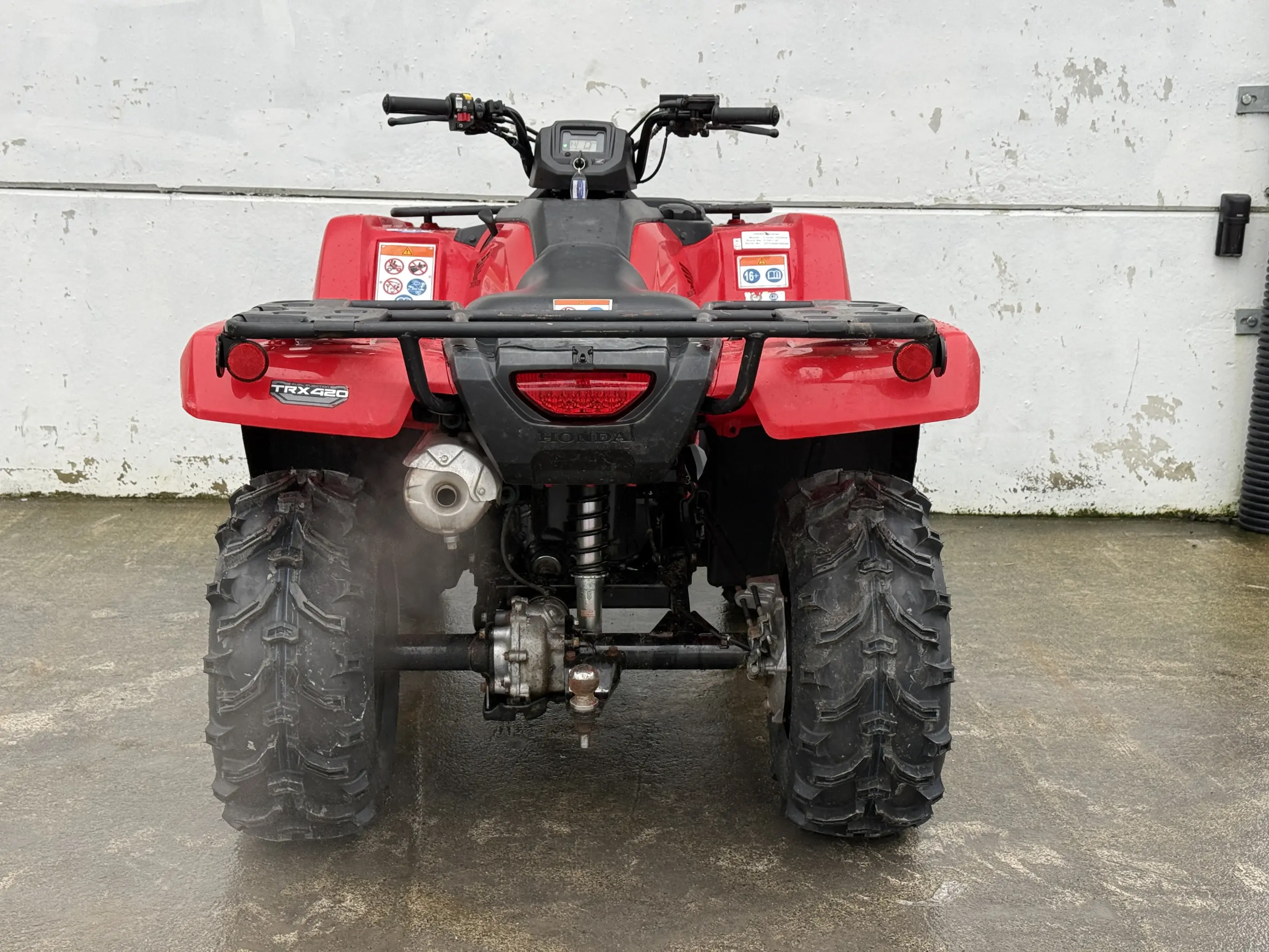

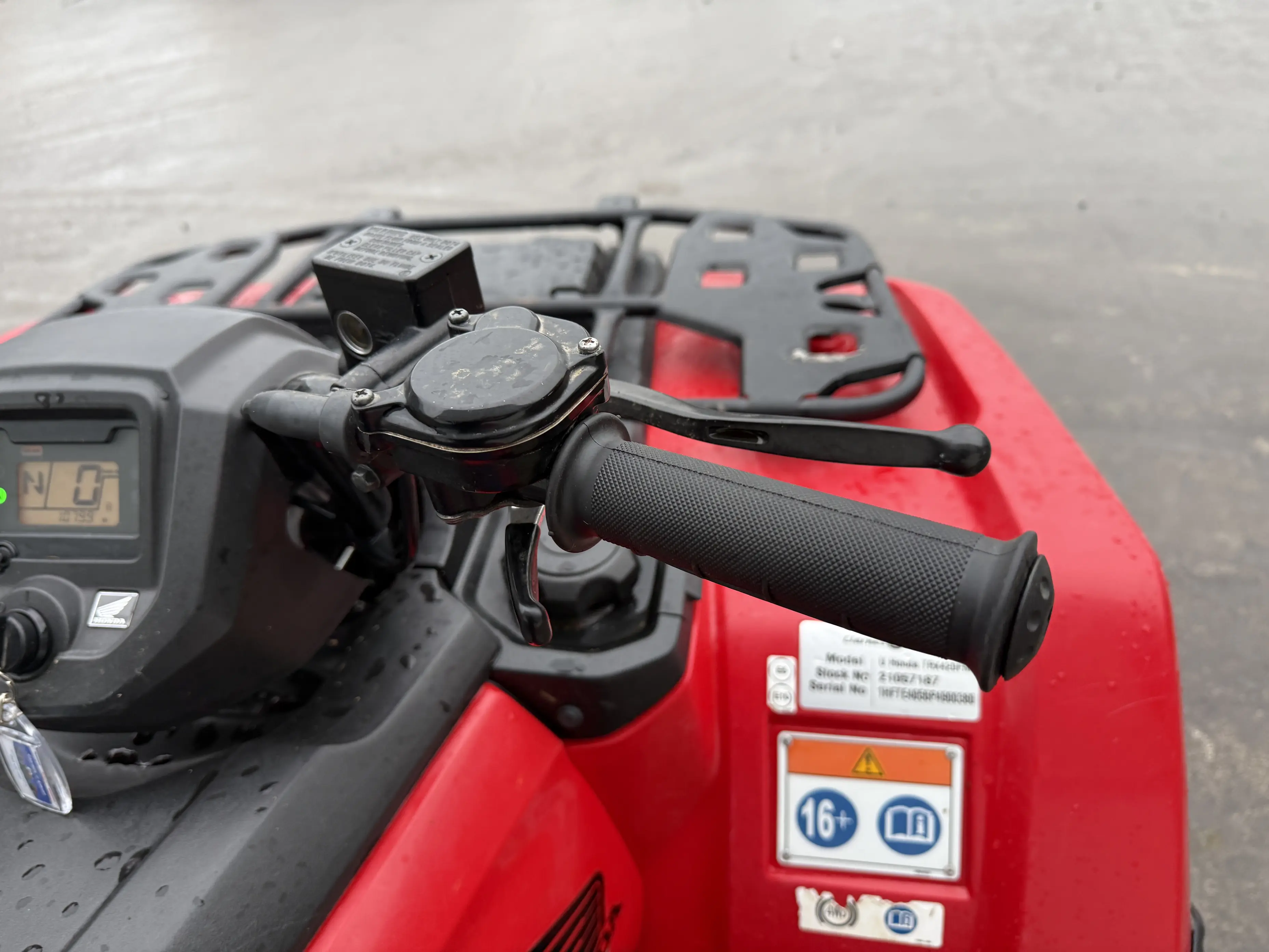

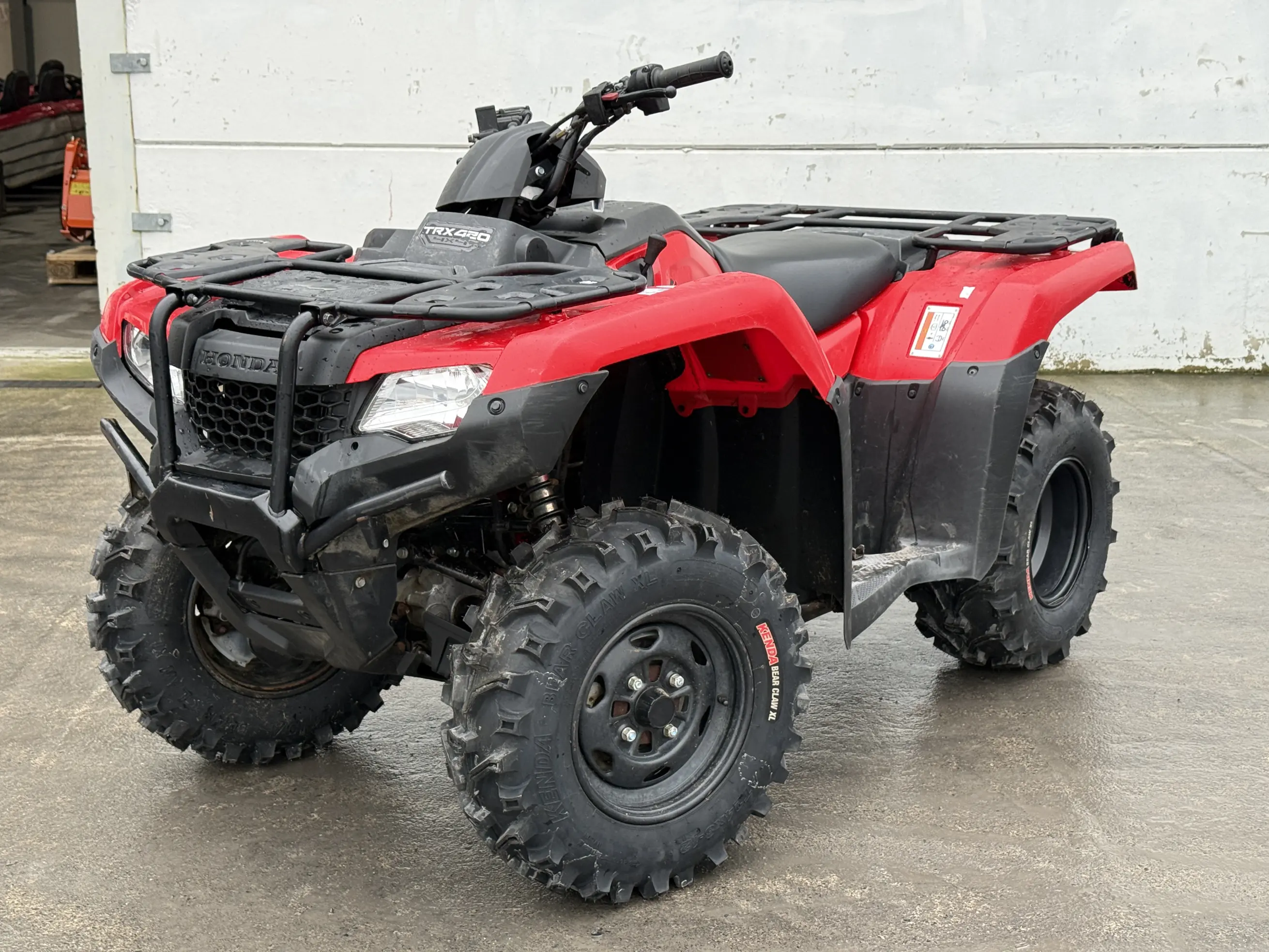

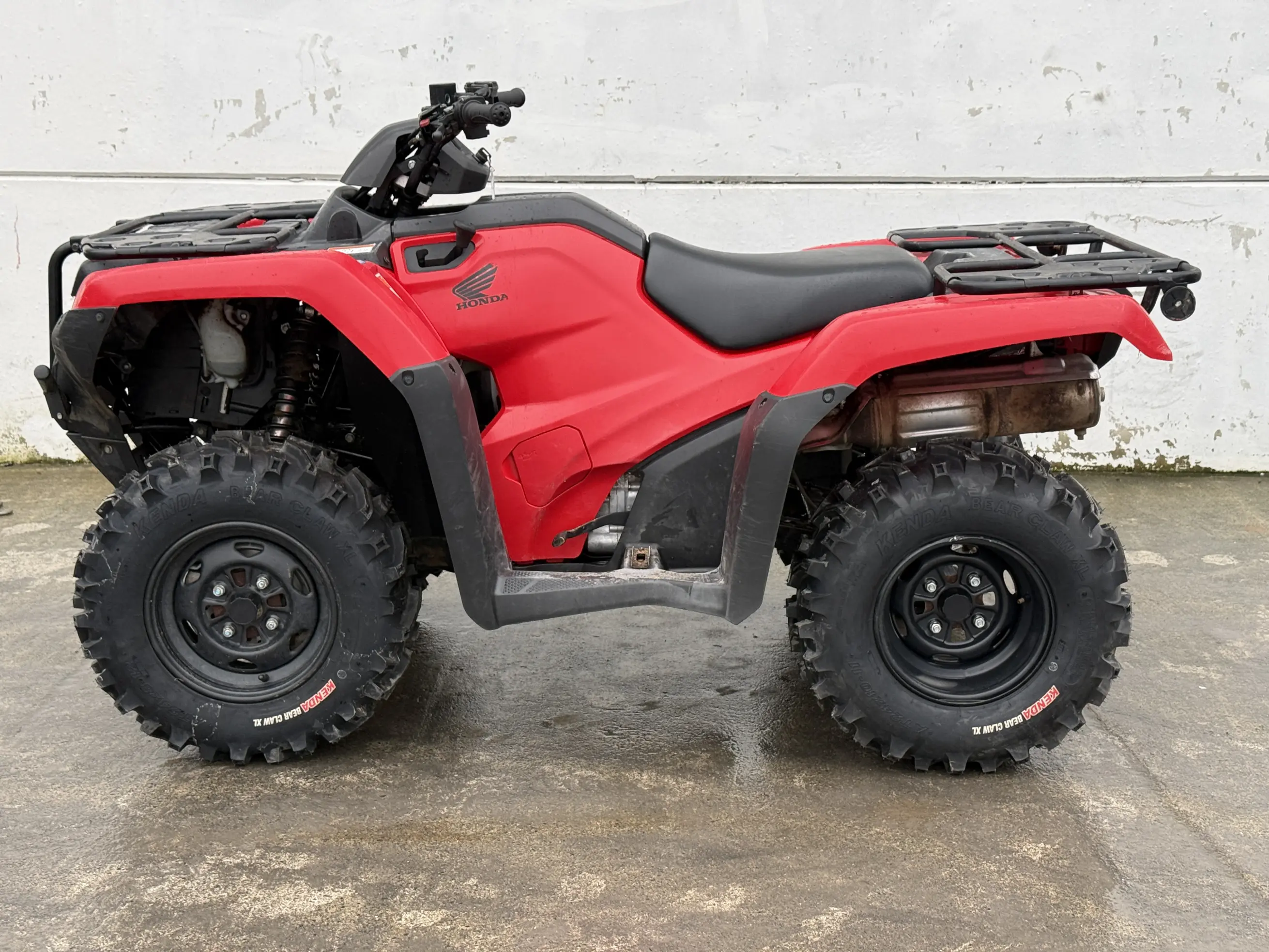

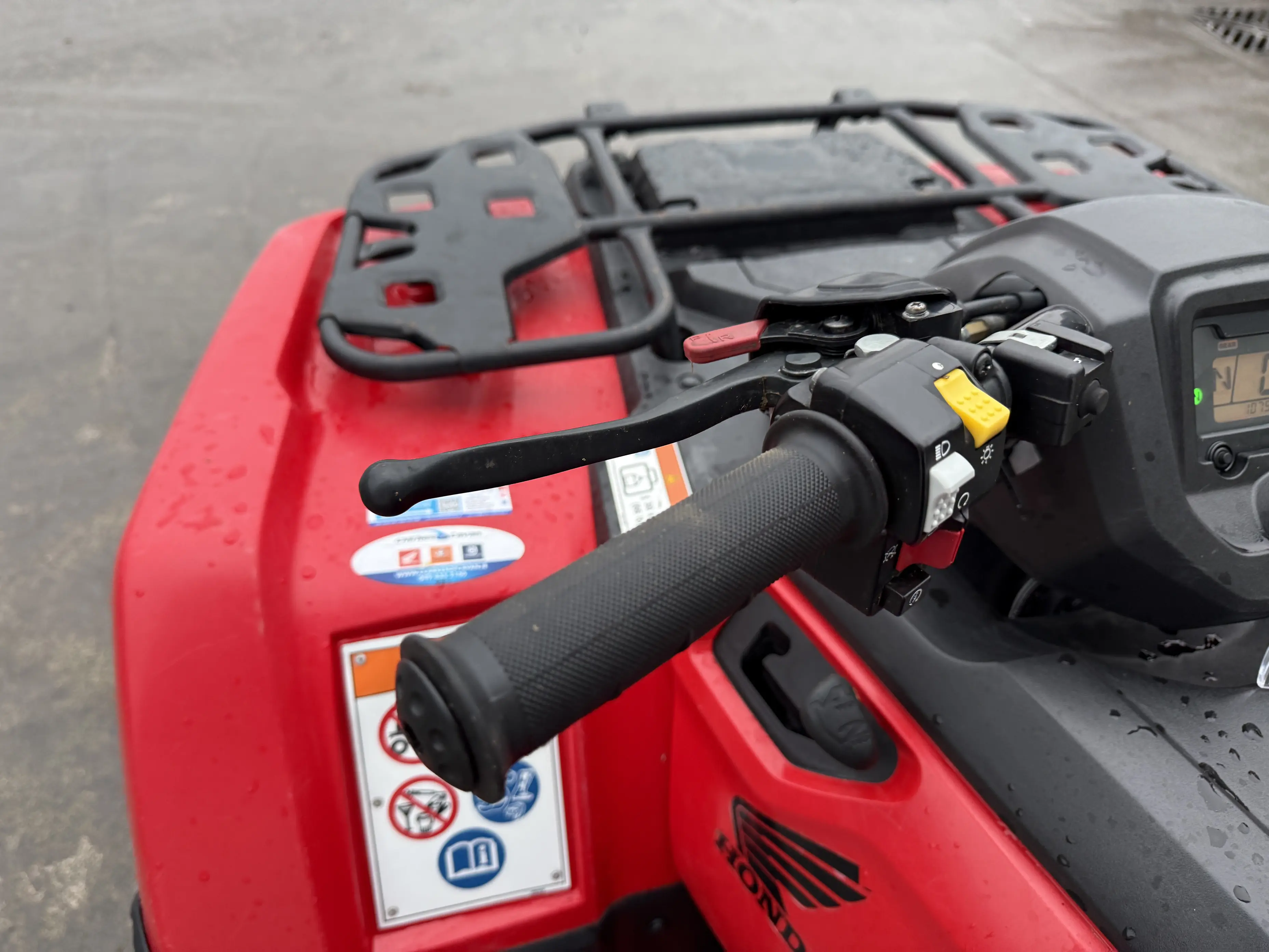

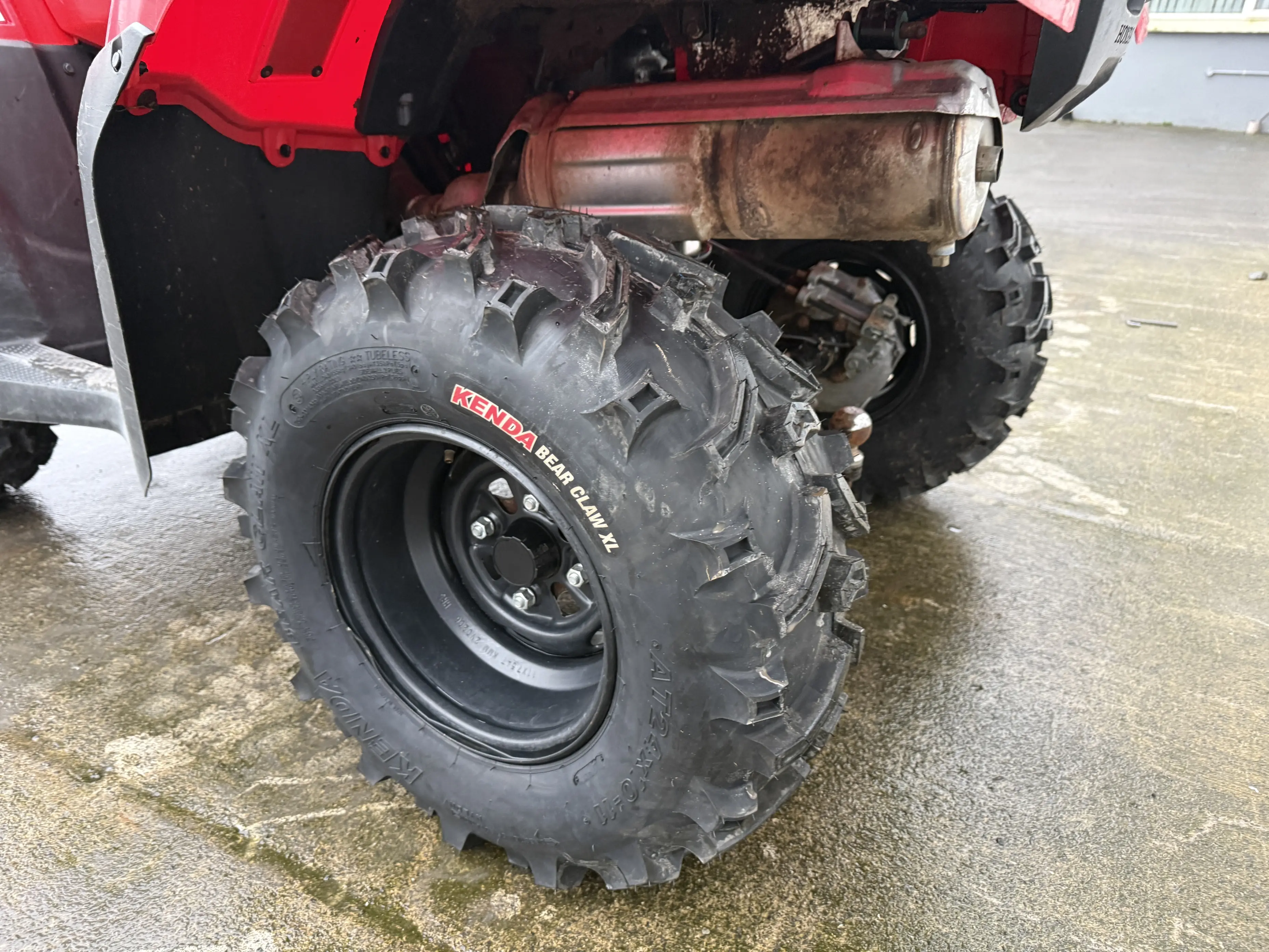

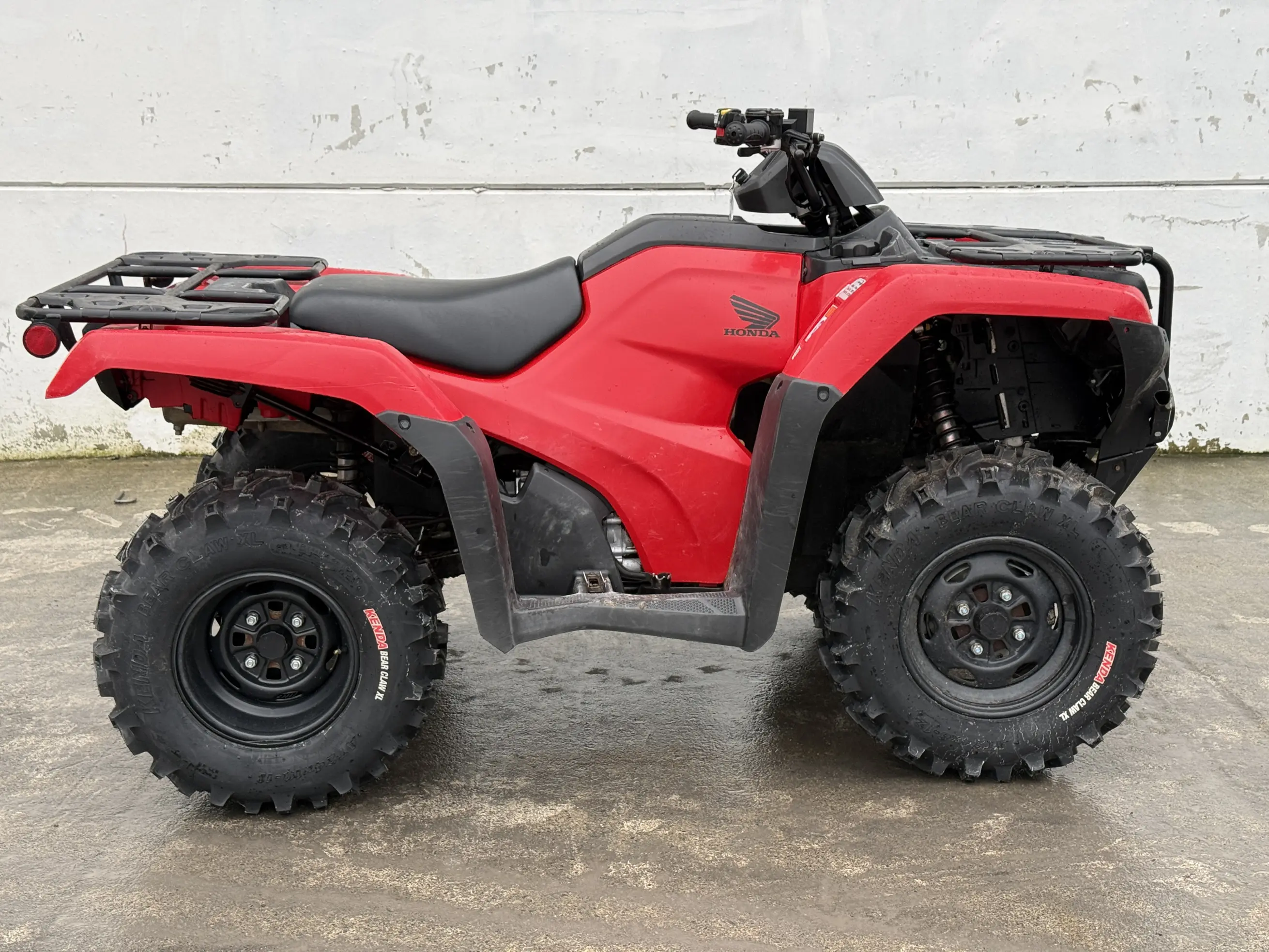

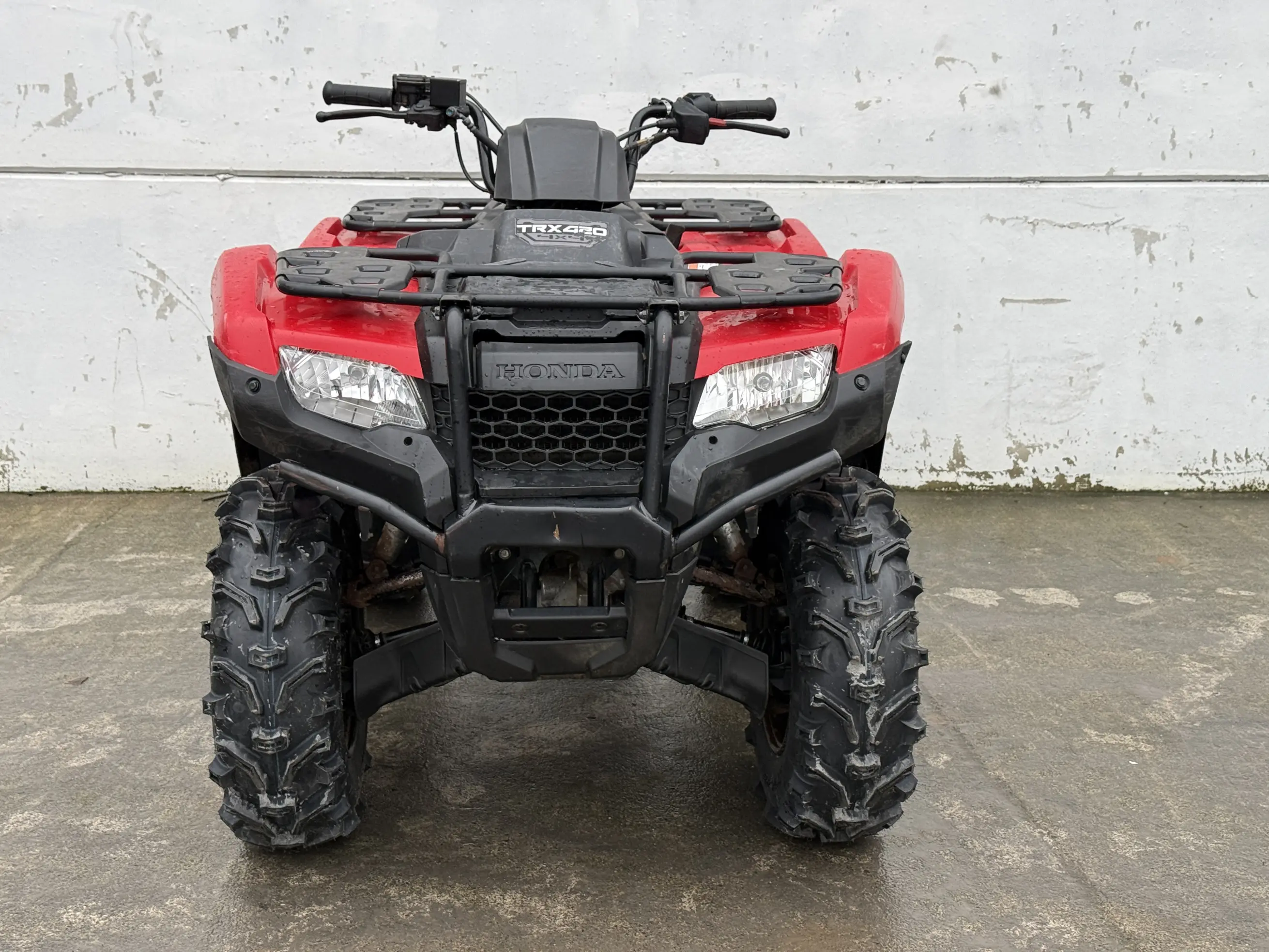

2024 Honda TRX420FM

used

21057187

CC: 420

Year: 2024

Transmission: Manual Shift

Steering : Standard

Suspension: Standard

Drivetrain: 2WD/4WD selectable

Approx Hours: 1070

overview

€POA

Delivery Available

Finance Available

Available Now

Honda TRX420FM Video

Any Questions? Ask our Sales team.

Martin Dowd 0863823721 mdowd@clarkesofcavan.ie

Whatsapp Martin

Email Martin

Overview

Used Honda 420FM, 2024, 1070Hrs, Manual, Tidy Condition

Specifications

Classification	Utility work ATV
Engine	420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder
Carburation	Keihin® PGM-FI, throttle bore size 34mm, body fuel-injection system
Ignition	Full-transistorized ignition
Starter	Electric with auxiliary recoil
Transmission	Manual Shift
Drive	4wd Direct drive-shafts, AP SuretracTM torque sensing limited-slip differential with switchable 2wd/4wd
Front Suspension	Independent double-wishbone 170mm travel
Rear Suspension	Swingarm with single shock 170mm travel
Power Steering	No
Front Brakes	190mm dual hydraulic discs
Rear Brake	160mm sealed mechanical drum
Front tyres	24 x 8-12
Rear tyres	24 x 10-11
Fuel Capacity (l)	14.7L, incl. 4.9L reserve.
Bore x Stroke (mm)	86.5 x 71.5
Dimensions - Length (mm)	2103
Dimensions - Width (mm)	1205
Dimensions - Height (mm)	1174
Wheelbase (mm)	1268
Seat Height (mm)	856
Ground Clearance (mm)	183
Towing Capacity (kg)	385
Front Rack Capacity (kg)	30
Rear Rack Capacity (kg)	60
